The Colt is a pure
Joy to fly.
The Colt is a pure Joy to fly. The Colt-S is a truly fun-to-fly trainer. Its advanced design is nimble, responsive, and stable with solid control forces throughout its entire flight envelope making it everything you want in new-generation trainer. And thanks to its exceptional in slow-flight characteristics, approaches and landings are as easy as they are fun.
THE COLT IS ONE ROUGH AND TOUGH TRAINER. It is the first S-LSA with an all aviation-grade aluminum airframe, solid metal rivets, and a welded Chromoly passenger safety cell. So it’s built to withstand what student pilots dish out. In fact, during its development, the Colt’s all-metal fuselage and wings were statically tested to stresses that exceeded those required by the ASTM S-LSA standards.
When you add the fact that all the Colt’s aluminum components are treated with anti-corrosive, you get a new-generation trainer that will last for decades
Why Texas Aircraft?
​
With decades of experience, we are able to offer you the best benefits in just one LSA airplane. The Colt.
• Large cabin space allowing room for you, your passenger, and your baggage.
• Low noise level within the cabin.
• Equipped with the most modern avionics panel on the market.
• Comfortable seats made from leather.
• Equipped with an optional parachute by GRS (Galaxy Recovery System).
• Powerplant provided by 100hp Rotax Engines.
Take the reins
of 100 horses
Maximum Cruise Speed: 118 knots TAS
Cruise Speed (Ve) @ 75% Power: 105 knots TAS
Stall Speed - Clean (Vs): 44 knots CAS
Stall Speed - FLAPS (Vso): 38 knots CAS
Maximum range (full tanks): 800 nm
Range w/ two adults (200lbs each): 300 nm
Fuel Economy: 3.6 US Gal/h
(@ 55% power, 90 knots TAS, 6500ft)
Takeoff Distance (50ft Obstacle): 1,085 feet
Landing Distance (50ft Obstacle): 1,044 feet
Climb Rate (Vy): 760 fpm
Service Celing: 14,500
Empty Weight: 851 lbs**
Useful Load: 469 lbs empty**
*All specifications are subjected to change without notice.
**Weight may vary depending on the aircraft’s configuration.
COLT Safety Features
​
• Welded Chromoly Steel Safety Cell
• All Aviation-Grade Aluminum Airframe
• Galaxy GRS Ballistic Parachute System (optional)
• Four-point Passenger Safety Harnesses
• Docile Flight Characteristics Slow Stall Speed
• Manufacturers Full Two Years Limited Warranty

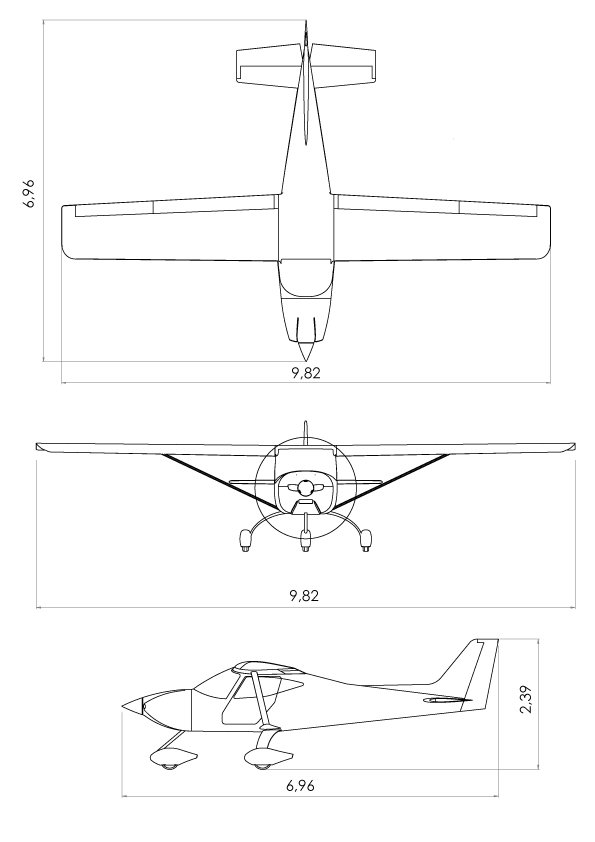

LENGTH.............................................................23”3’
HEIGHT.................................................................7”7’
WINGSPAN........................................................32”2’
CABIN HEIGHT....................................................3”8’
SEAT WIDTH.........................................................16”
MAXIMUM BAGAGE WEIGHT.........................44lbs
BAGAGE AREA VOLUME.........................38” X 22”
Safety/Parachute
It take just seconds to save a life. Keeping your safety as our number one high priority, our engineers have complemented the COLT's built-in structural integrity with a state of the art balistic parachute (optional on COLT-S), welded chromoly steel safety cell (CrMo, Chrome Molybdenum Steel), four point
Hooker, passenger harnesses, Dynon SkyView with 3D graphics, synthetic vision and much more.

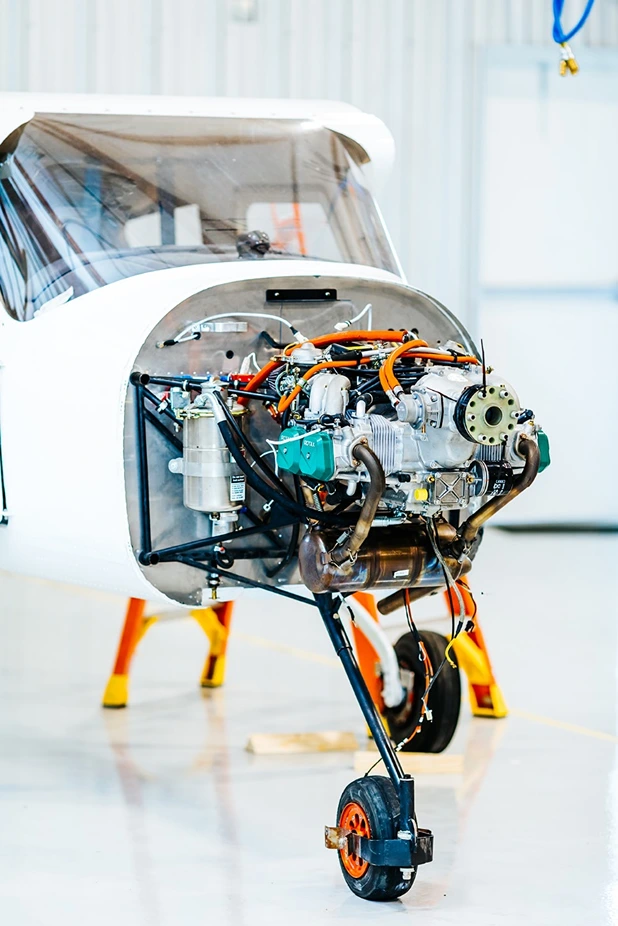

ENGINE AND PROPELLER
​
​
Sterna S69CBMR
3 Blades
69” Diameter
Fixed pitch and ground adjustable
Rotax 912 ULS - Standard
Carburated Engine Dual Electronic Ignition
100 HP @ 5.800RPM 5.4 Gal/h @ 75%
power. 20 Amp internal energy Generator
TBO 2,000 hrs

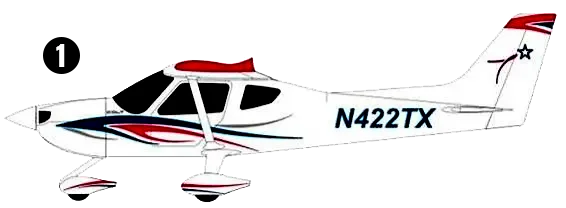

1. Exterior Standard Design – Option 1 (up to 3 colors)
Main Base in Pure White with Polyurethane Paint
Wing Tips painted in Polyurethane Color
N-Number in Vinyl
Vinyl Scheme in Standard options
*Metallic or Pearl Paint and Vinyl have Additional cost
2. Exterior Custom Design – Option 2 (up to 3 colors) - Consult for values
Main Base in Pure White with Polyurethane Paint
Wing Tips painted in Polyurethane Color
N-Number in Vinyl
Painted Standard Scheme with Vinyl options
*Metallic or Pearl Paint and Vinyl have Additional cost
**Only available on Colt SL
AVIONICS AND PANELS OPTIONS
EQUIPMENTS
COLT SL
​
VFR + AUTOPILOT
SINGLE SCREEN
• G3X 10.6” display w/ EMS
• GTX 45R Transponder
• ADS-B IN/OUT
• GTR 200B COM Radio
• Analogic Instruments Backup (Air speed, Bank, Compass)
• 3 axis Autopilot (Pitch, Roll, Yaw)
• Instrument Panel lights
• Bose 6 Pins LEMO Headset Connector
Optional Equipment
• Garmin G5 Electronic Flight Instrument
• Second PFD/MFD Garmin G3X Touchscreen 10”
COLT SLS IFR/TAA
Installation of the IFR components will be done by a specialized Garmin service center
​
IFR/R-NAV/TAA
SINGLE SCREEN
• Garmin GTN650 (MFD, GPS, NAV/COM)
• Garmin G5 Backup Display
• Audio Panel Garmin GMA245 with Bluetooth
• Auxiliar 40Amp Alternator
• GAP26 Heated Pitot Tube with AOA
• Automatic Heat Control for GAP26
• GA35 GPS/WAAS antena
• GMC 507 Autopilot Control Panel with 3 GSA 28 servos (Pitch, Roll, Yaw)
​
Optional Equipments
Second PFD/MFD Garmin G3X Touchscreen 10" - $5.800
​
​
​
​
Aeronautical Construction Standards
The Colt is manufactured to the strictest aeronautical standards. The fuselage is made of ALCLAD 2024 aeronautical aluminum with solid rivets, guaranteeing high torsional strength and low weight. The survival cell is chrome-molybdenum steel, as used in racing cars, providing maximum safety for the occupants. Semi-cantilever wings provide great strength and low weight. The engine fairing, wingtips, spats and doors are made of carbon fiber for a better finish and aerodynamics. ​ All electrical cables and connectors used on Colt are aircraft standard.
